We present you
HARVESTER 9000
HERBEX VERSION

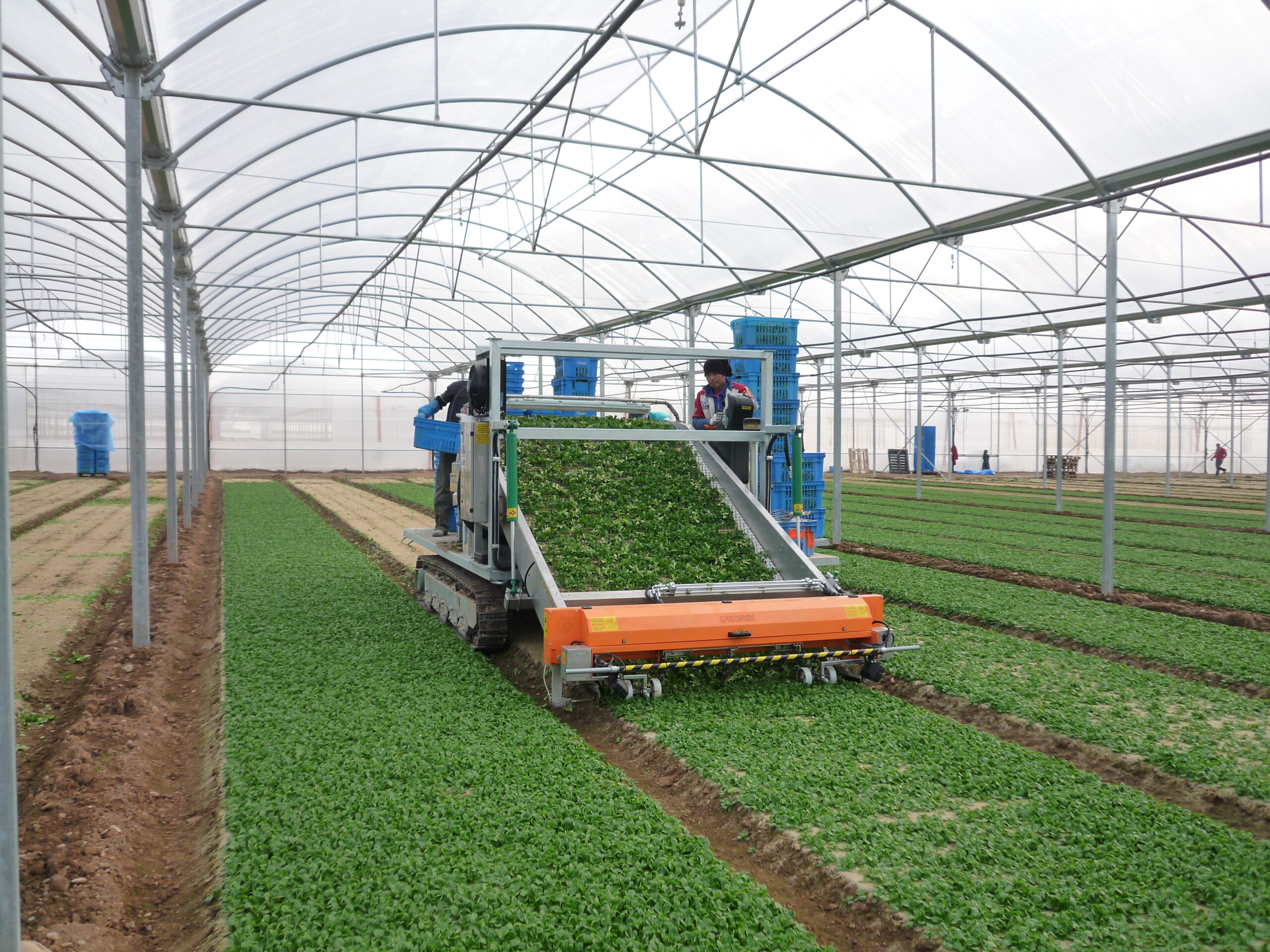

Harvester 9000
Self-propelled on tracks
Machine in “HERBEX” version, for the harvest of Corn Salad.
- Oscillating single cutting blade with hydraulic movement;
- Ortomec polyurethane collection belt with rubber nails, food-grade certified;
- Support-feet on cutting blade with hydraulic adjustment;
- Lubrication of the cutting arch with centralised system;
- Control of cutting height by means of system of electronic sensors;
- Hydraulic conveyor belt;
- Cutting blade speed adjustment by means of hydraulic valve;
- Conveyor belt speed adjustment control from driver’s seat by means of manual control valve;
- Conveyor belt food-grade certified;
- Conveyor belt frame in stainless steel.
Main Features
- Tracked wagon on fixed rollers (or movable as optional): steel tracks, width: 20, 25 or 30 cm, length 270 cm; rubber tracks, width 30 cm, length 270 cm;
- Fixed track from 145 cm to 210 cm;
- 74 HP Diesel engine;
- Steering and forward movement by means of joystick;
- Working/loading deck dimensions: 300-350-400-450 x 420-470 cm (with side platforms opened);
- Side platforms width: 100 or 125 cm each one;
- Side platforms with hydraulic opening/closing;
- Speed: from 0 to 6 km/h with gradual variation;
- Hot galvanised machine frame;
- Multifunction joystick;
- Touch screen display;
- Stainless steel crankcase and hydraulic oil reservoir;
- Temporary work stop system with restart of same speed;
- N. 1 hydraulic connection for auxiliary service;
- Ground clearance: 32 cm;
- Total weight of machine: approx. 4.000 kg;
- LED light system complete with nr. 3 lights.
